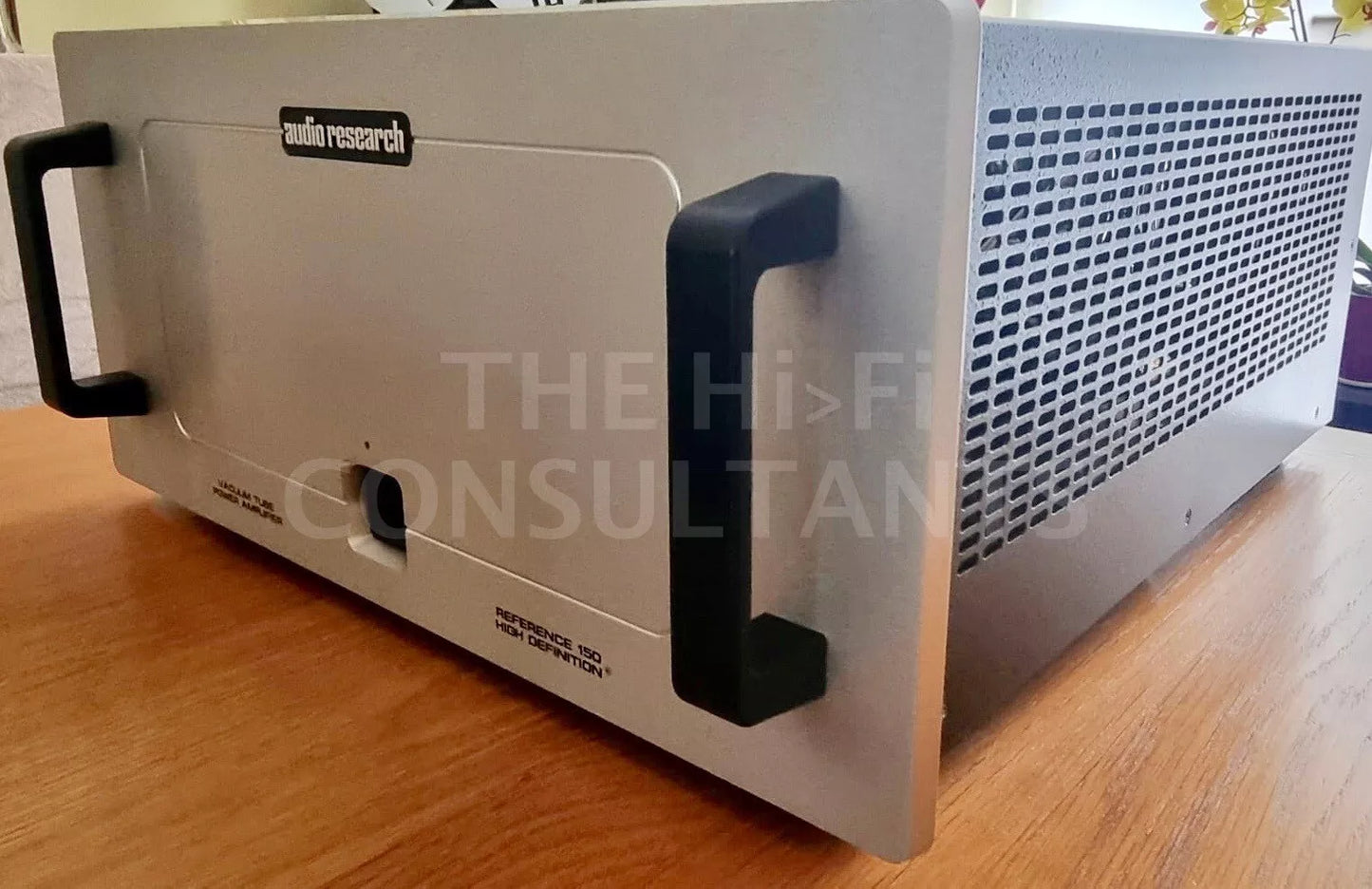

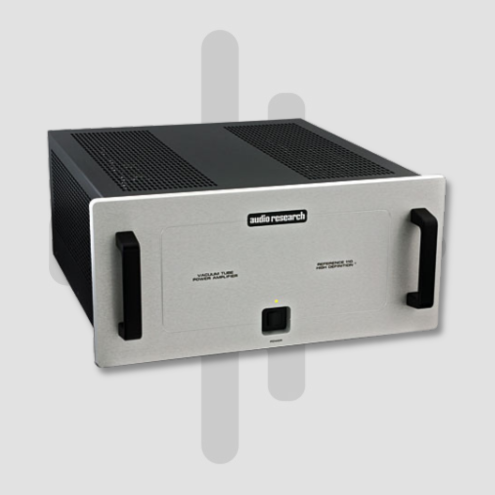

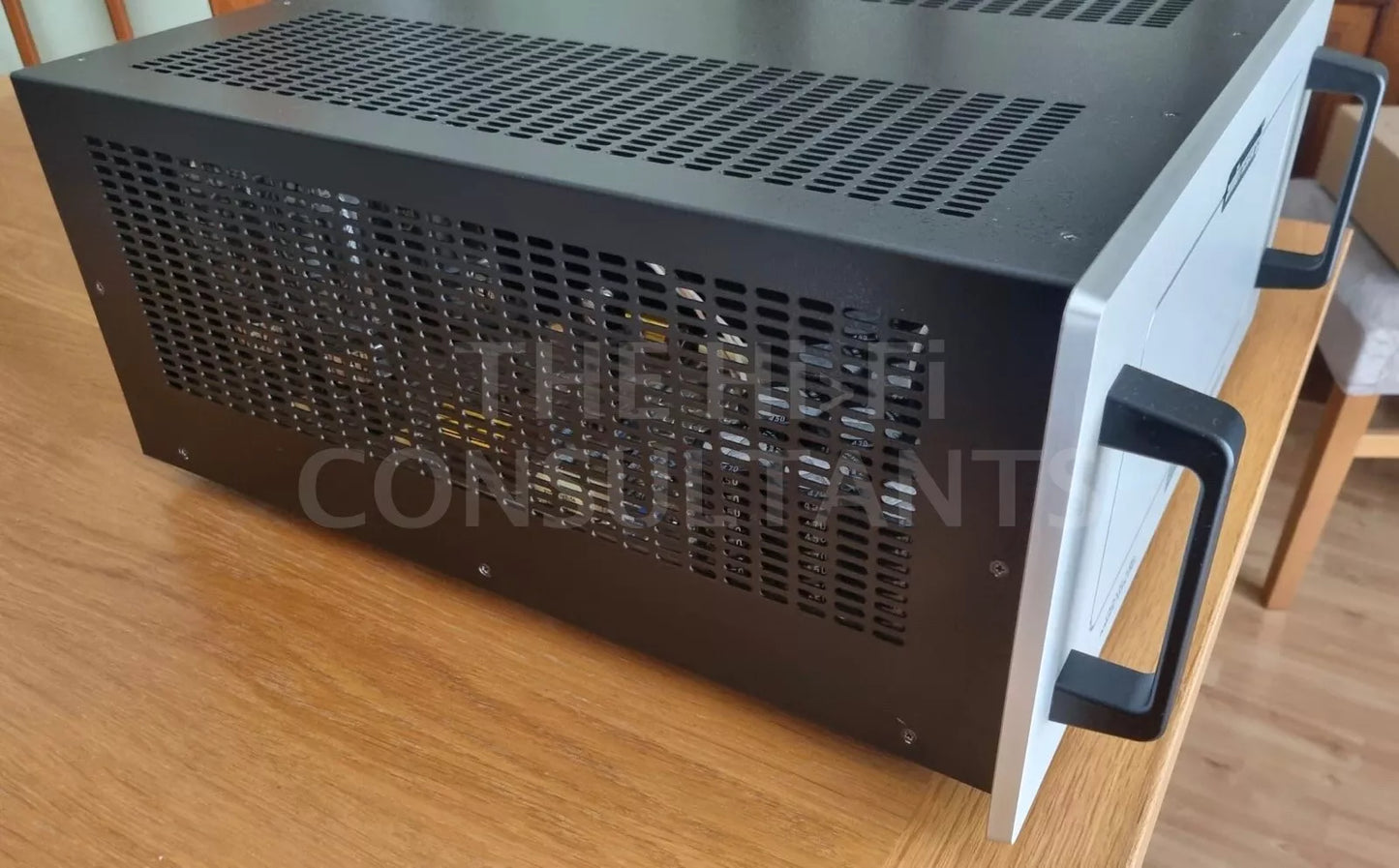

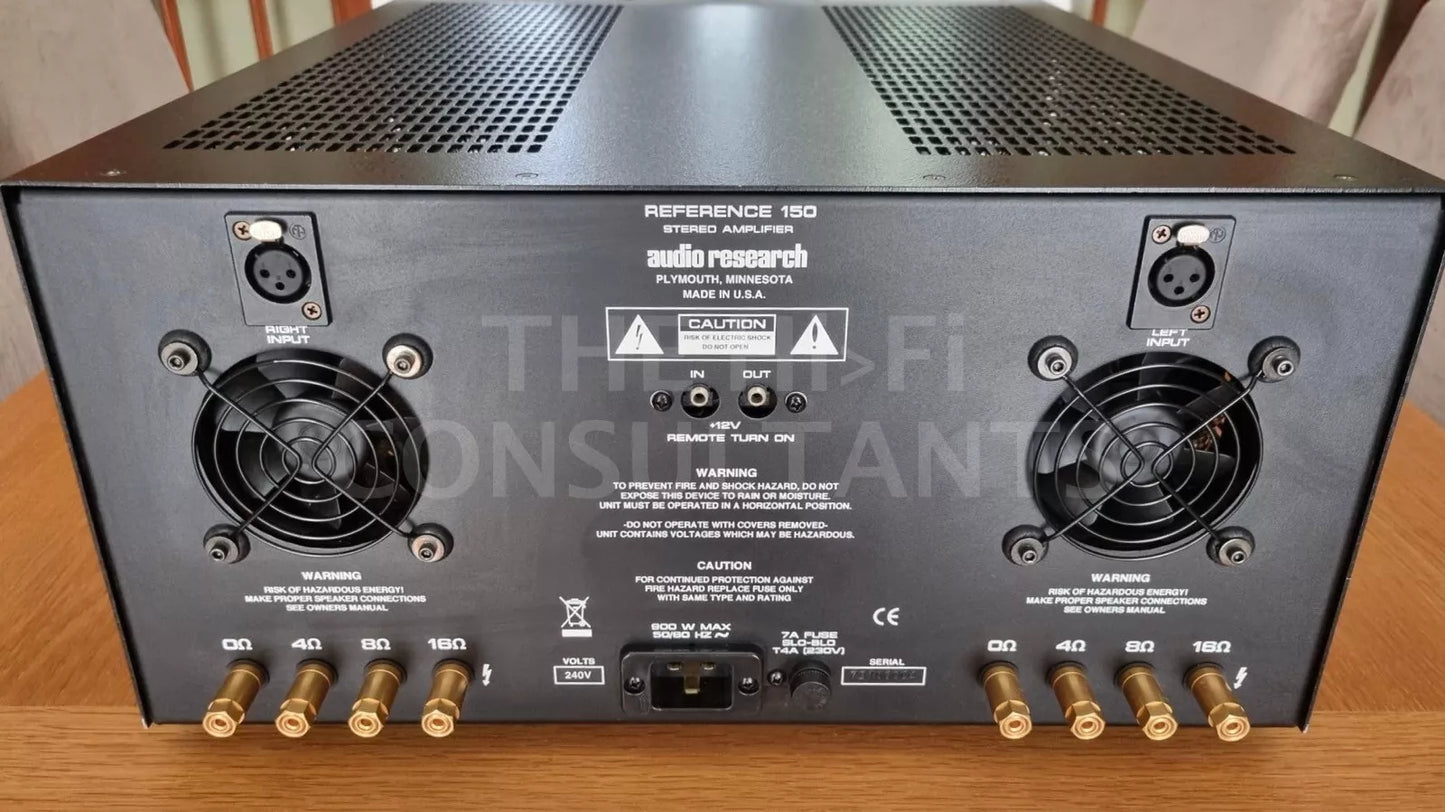

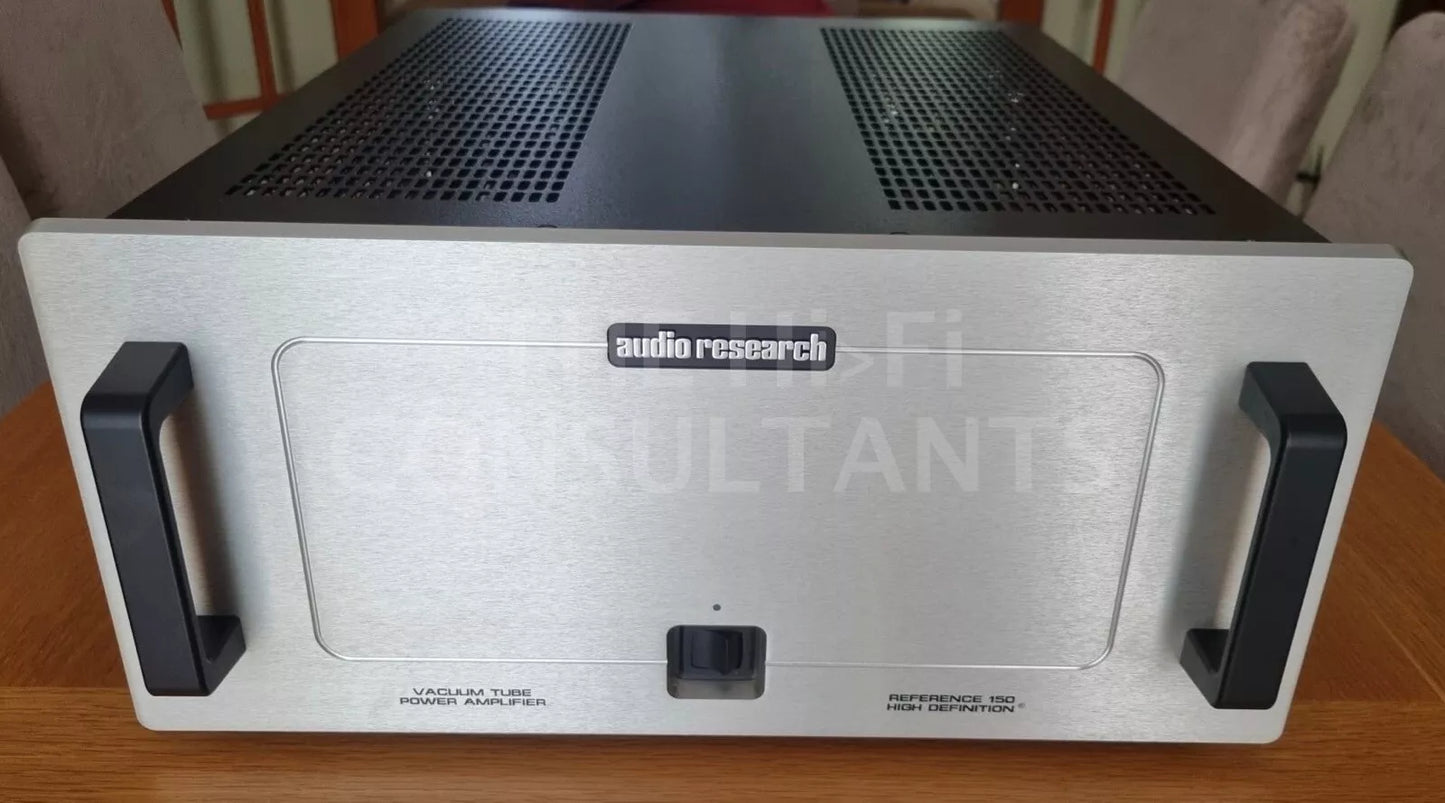

AUDIO RESEARCH REF 150 STEREO VALVE POWER AMPLIFIER

Name: AUDIO RESEARCH REF 150 STEREO VALVE POWER AMPLIFIER
Brand: thehificonsultants
Price: 4250.0 GBP
Availability: InStock

£4,250.00 GBP

~~£0.00 GBP~~ £4,250.00 GBP

Price Drop SOLD

Tax included. Shipping calculated at checkout.

(Original Retail Price £12,500)

Item Details

Manufactured in 2013
This item is in excellent condition (9/10)
The serial number is 73106004
The sale includes original box, manuals & accessories.
The original retail price was £12,500

Technical Specification

Tube complement: eight KT120 (matched pairs, output), four 6H30 (driver).

Input: Balanced, pin 2+ (IEC-268).

Output taps: 16, 8, 4 ohms. Power output: 150Wpc (21.75dBW) continuous, 20Hz–20kHz into matched load. Approximate actual power available at clipping: 160W.

Power bandwidth: 5Hz–80kHz, –3dB.

Frequency response: 0.5Hz–120kHz, –3dB at 1W. THD at 1kHz: typically 0.6% at 150W, <0.03% at 1W.

Input sensitivity: 2.0V RMS for rated output, Voltage gain: 24dB into 8 ohms. Input impedance: 300k ohms, balanced.

Output polarity: non-inverting.

Output regulation: approx. 0.6dB 16 ohm load to open circuit (damping factor: approx. 14).

Overall negative feedback: 14dB. Slew rate: 13V/µs.

Risetime: 2.0µs. Hum and noise: <0.1mV RMS, 114dB below rated output (IHF weighted, input shorted).

Power-supply energy storage: approx. 1040 joules.

Power requirements: 105–125VAC, 60Hz (210–250VAC, 50Hz), 730W at rated output, 900W maximum, 420W idle.

Dimensions: 19" (483mm) W by 8.75" (222mm) H by 19.5" (495mm) D. Front-panel handles extend 1.5" (38mm). Weight: 75 lbs (34.2kg) net, 90 lbs (41kg) shipping.

Resources & Reviews

Manufacturers Website - https://audioresearch.com/

Hi-Fi News (2015) - https://www.absolutesounds.com/pdf/main/press/ARC%20REF150SE%20HFN%2012-15_4web.pdf
