CHORD HUGO M SCALER UPSCALER

CHORD HUGO M SCALER UPSCALER

£2,499.00 GBP
£2,499.00 GBP
Price Drop SOLD
Tax included. Shipping calculated at checkout.

(Original Retail Price £3,500)

Item Details

  • This item is in excellent condition (9/10)

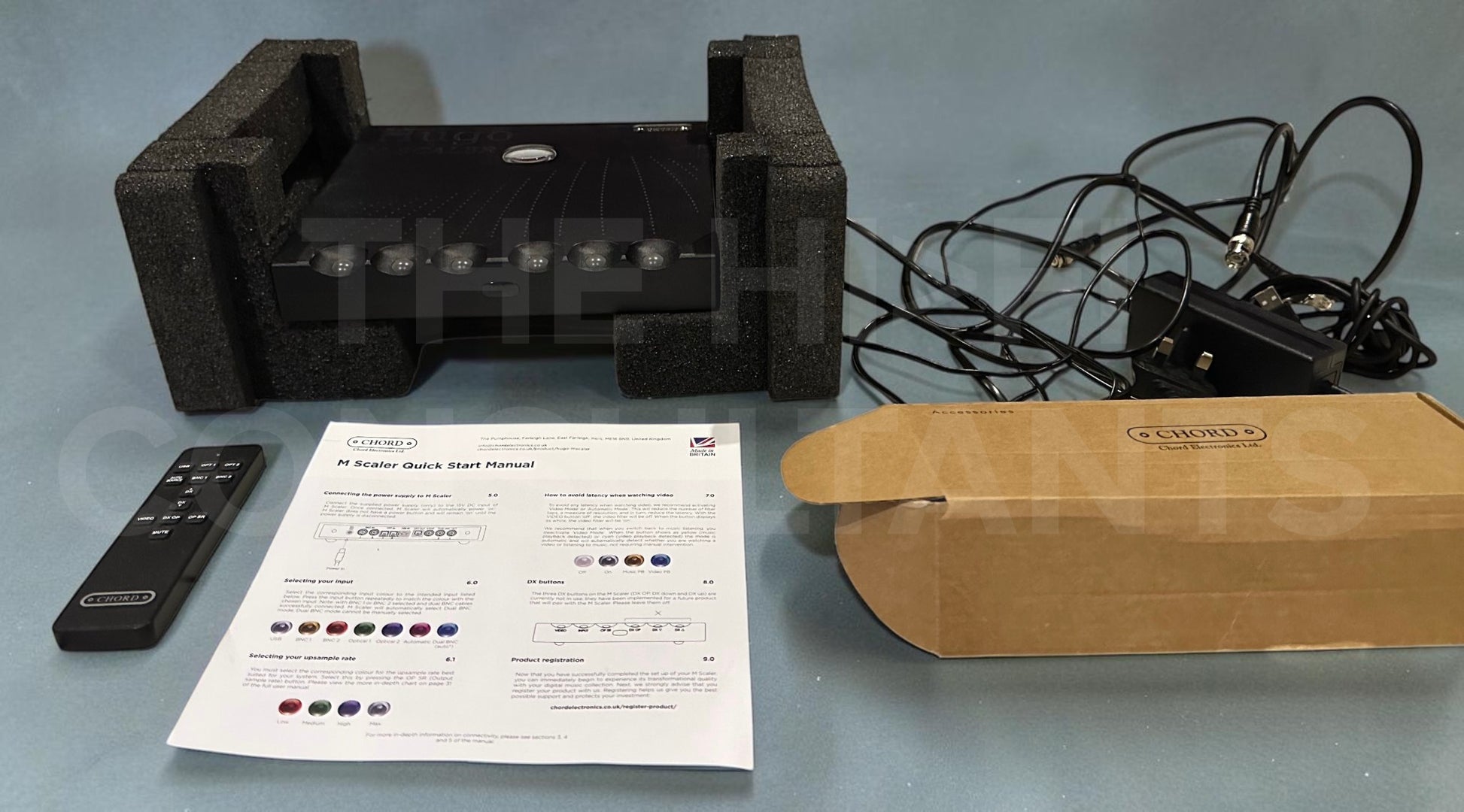

  • Remote, manual and inner packaging included. We don't have the box but will make sure it is safely packed before sending out
  • Serial Number: 42262
  • Original retail price: £3,495

Specification

Parameter Detail
FPGA Xilinx XC7A200T
Filter Tap Length 1,015,808 WTA taps
DSP Cores 740
Max Upsampling (standard) 705.6kHz (16x from 44.1kHz)
Max Upsampling (dual-BNC Chord DACs) 768kHz (from 96kHz input)

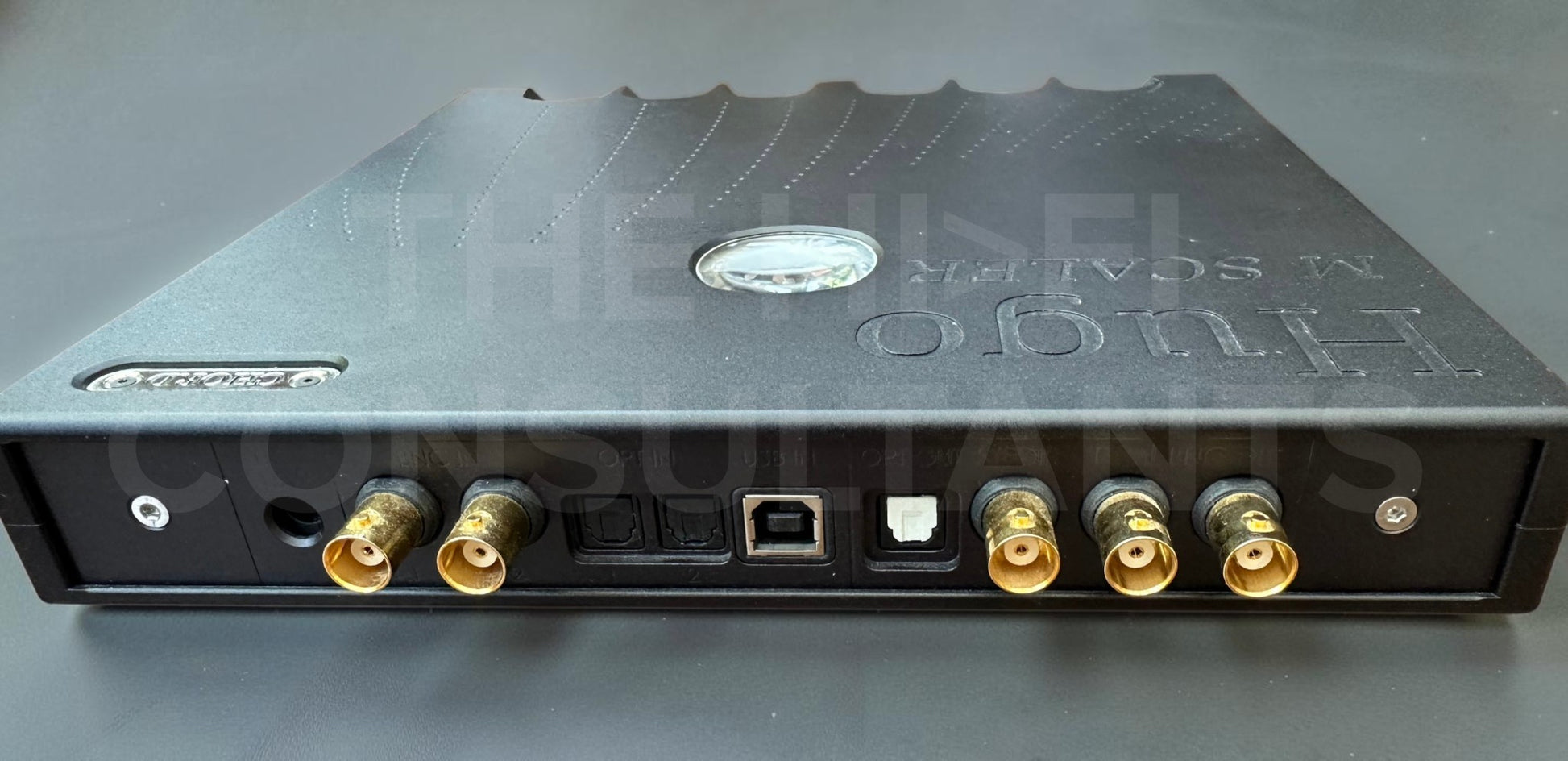

Inputs 1x USB Type-B (galvanically isolated), 2x Coax BNC, 2x Optical
Outputs 1x Dual BNC (galvanically isolated), 1x BNC S/PDIF, 1x Optical
PCM Support 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 / 717.6 / 768kHz, 16–32bit
Driver Support Driverless (Mac/Linux); driver required (Windows)
Power Consumption 30W (full) / 10W (standby)
Power Supply 15V 4A switching barrel-type
Colours Black, Silver
Dimensions 4cm (H) × 23.5cm (W) × 23.8cm (D)
Weight 2.55kg


https://chordelectronics.co.uk/product/hugo-mscaler


If you have any questions don't hesitate to reach out to us!

Please note: International shipping is available for this item. If you are interested in purchasing this item, we ask you to contact us at info@hificonsultants.co.uk with your address details prior to checkout. We will then supply you with a quote to cover the shipping costs and any associated fees for delivery to your chosen location. Please refer to our Shipping Policy for more detail.
