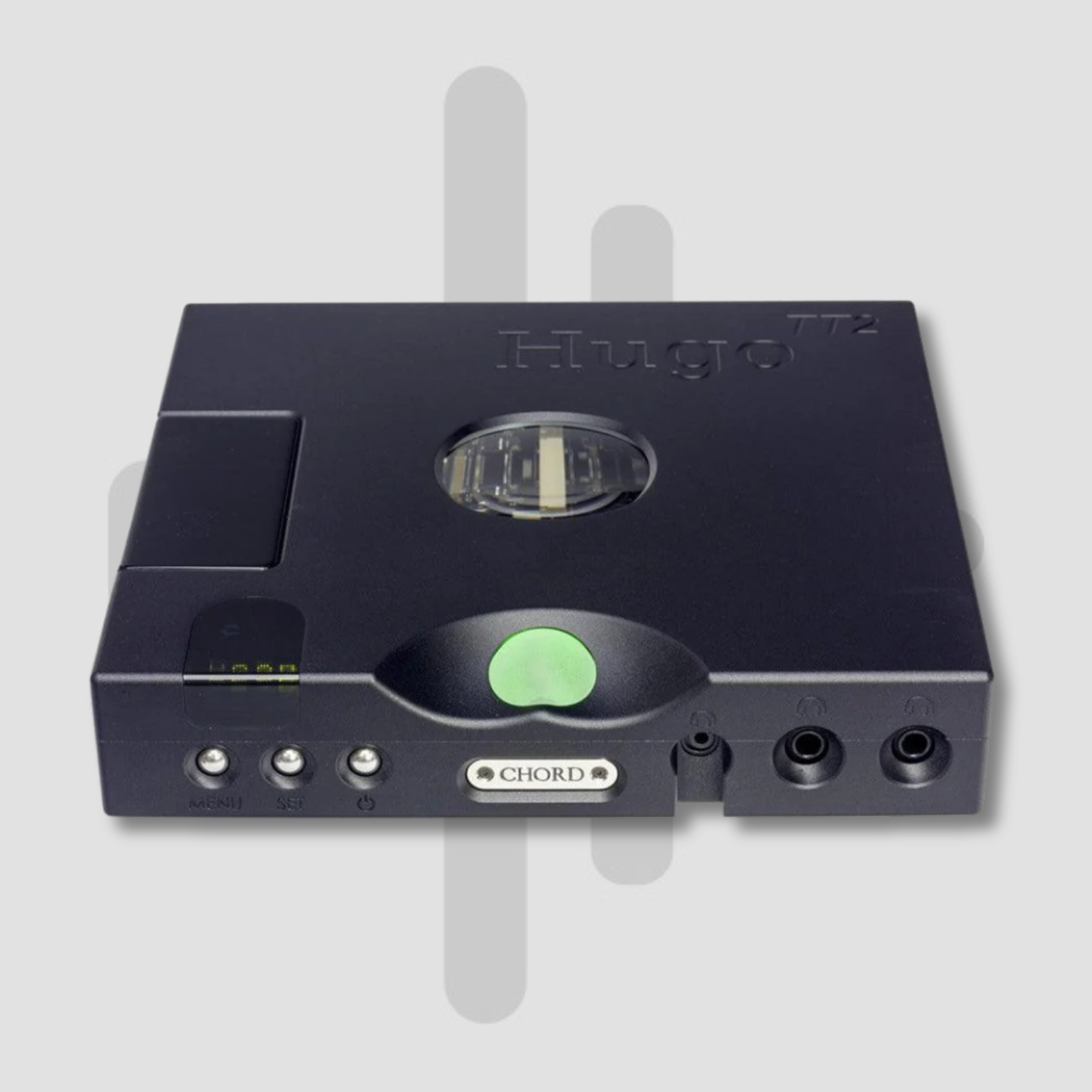

CHORD HUGO TT2 DAC, PRE AMP, HEADPHONE AMP

Item Details

• Manufactured circa 2020
• This item is in very good condition (8/10)*

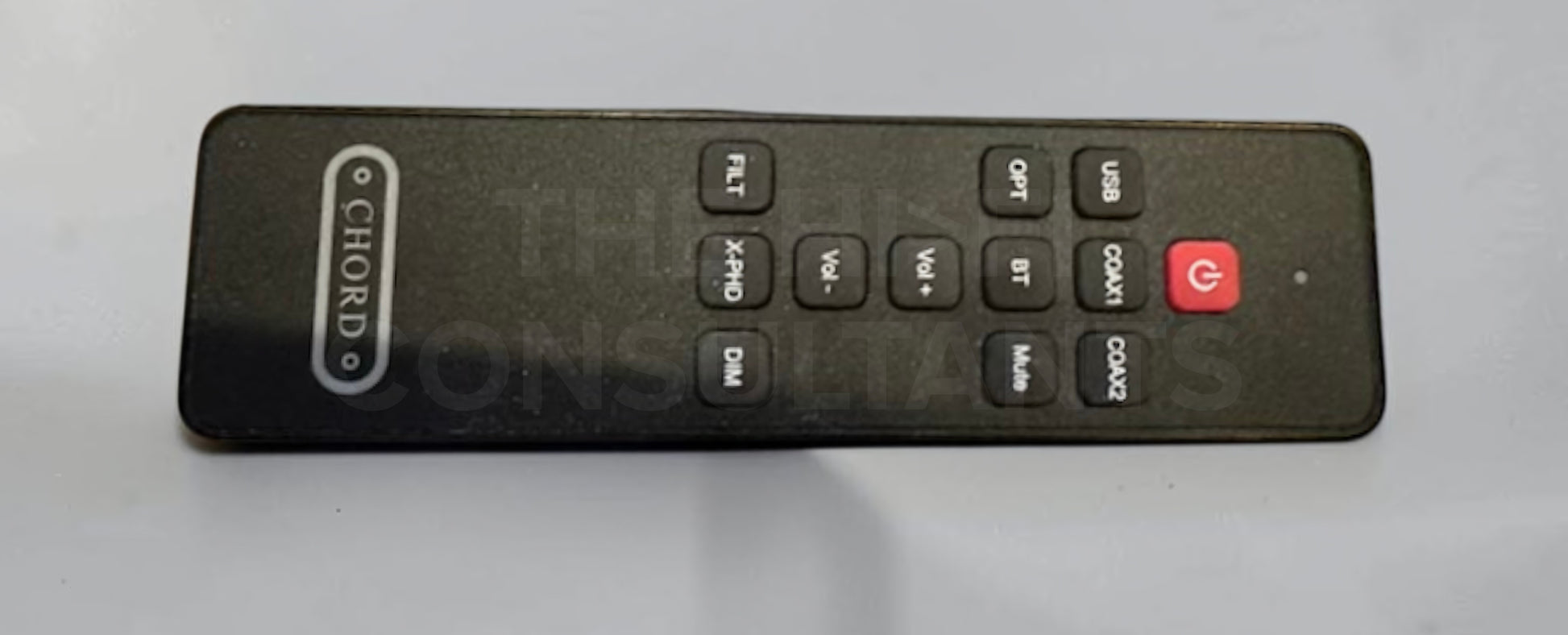

• Original packing, remote control and manual included.

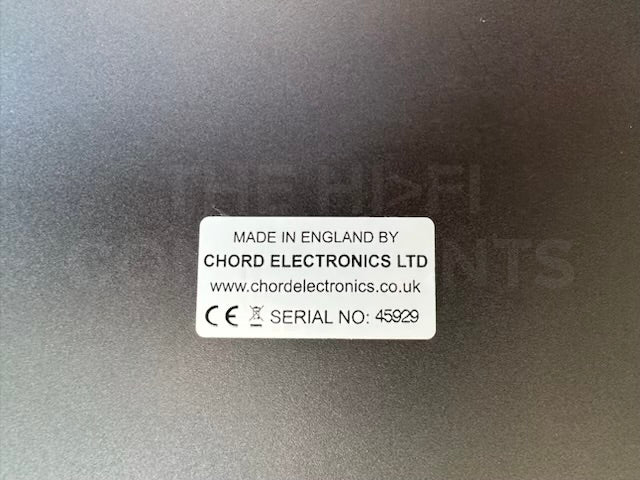

• Serial Number:
• Original retail price: £3,995

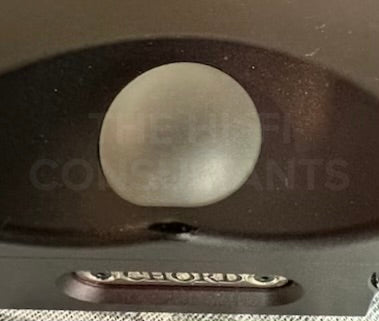

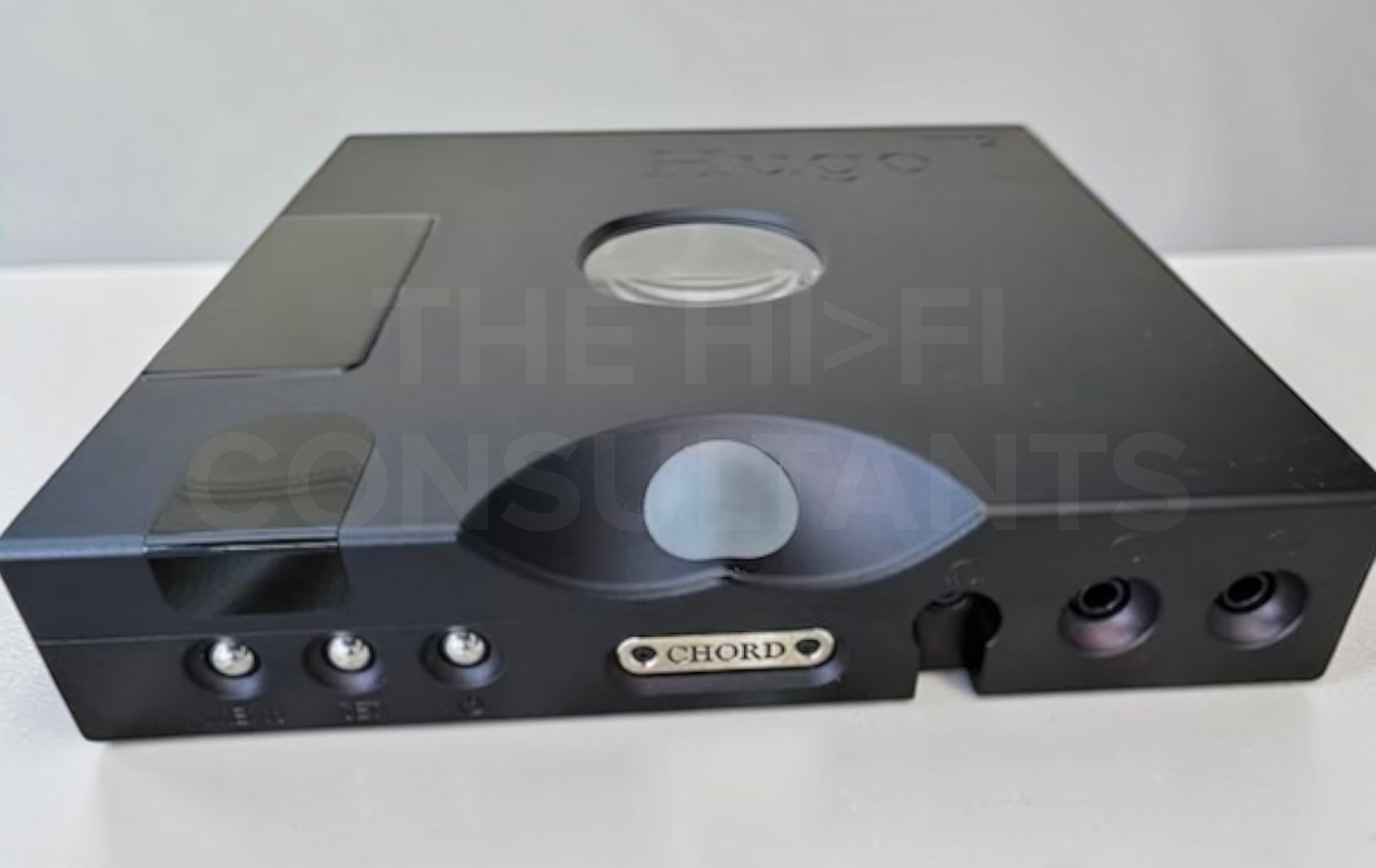

*There a few minor scuffs which are difficult to show on the photos.

Specification

Parameter	Specification
Type	DAC / preamplifier / headphone amplifier (desktop)
DAC architecture	Chord proprietary FPGA (Xilinx Artix 7), 10-element Pulse Array design, 86 × 208MHz DSP cores
Digital filter	98,304-tap 16FS WTA 1 filter

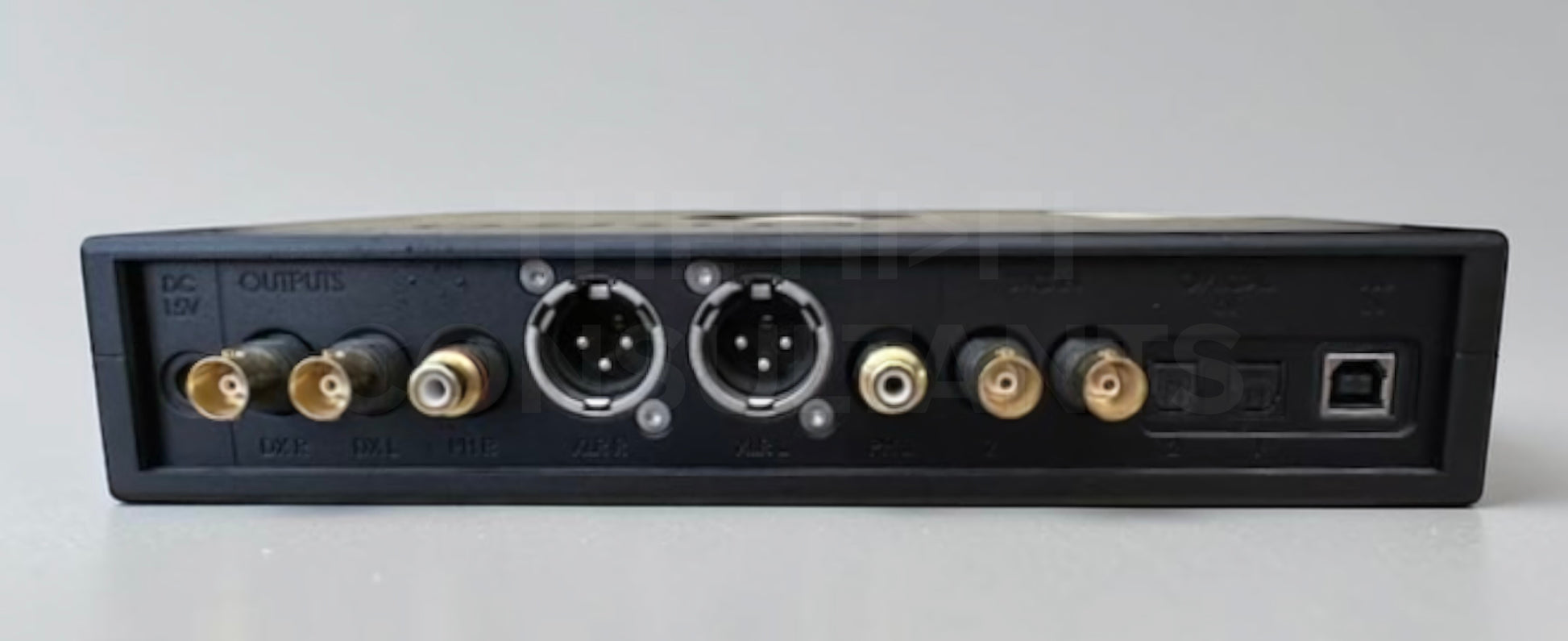

Inputs	1 × USB Type-B, 2 × coaxial BNC (S/PDIF), 2 × optical TOSLINK
Dual-BNC input	Yes — supports 768kHz via Hugo M Scaler
Bluetooth	Not fitted
Line outputs	1 pr balanced XLR, 1 pr single-ended RCA
Headphone outputs	2 × 6.35mm (1/4in), 1 × 3.5mm
Expansion	2 × DX BNC digital outputs
PCM support	44.1kHz – 768kHz, 16–32 bit
DSD support	DSD64 – DSD512 (DoP); native DSD via Windows
Dynamic range	127dB A-weighted
THD+N	0.00008% @ 2.5V / 300Ω; 0.00016% @ 6W / 8Ω
Noise	1.7µV A-wtd (low gain); 4µV A-wtd (high gain)
Output impedance	0.042Ω
Channel separation	–138dB @ 1kHz
Power output — unbalanced	288mW RMS into 300Ω; 7.3W RMS into 8Ω
Power output — balanced	1.15W RMS into 300Ω; 18W RMS into 8Ω
Volume control	Digital, with cross-feed filter (3 settings) and configurable output modes (DAC / line-level / preamp)
Power supply	External 15V / 4A DC supply; supercapacitor energy reservoir
Power consumption	30W max, 10W standby
Dimensions (H×W×D)	52 × 235 × 238mm
Weight	2.53kg
Finishes	Silver, Satin Black

If you have any questions don't hesitate to reach out to us!
