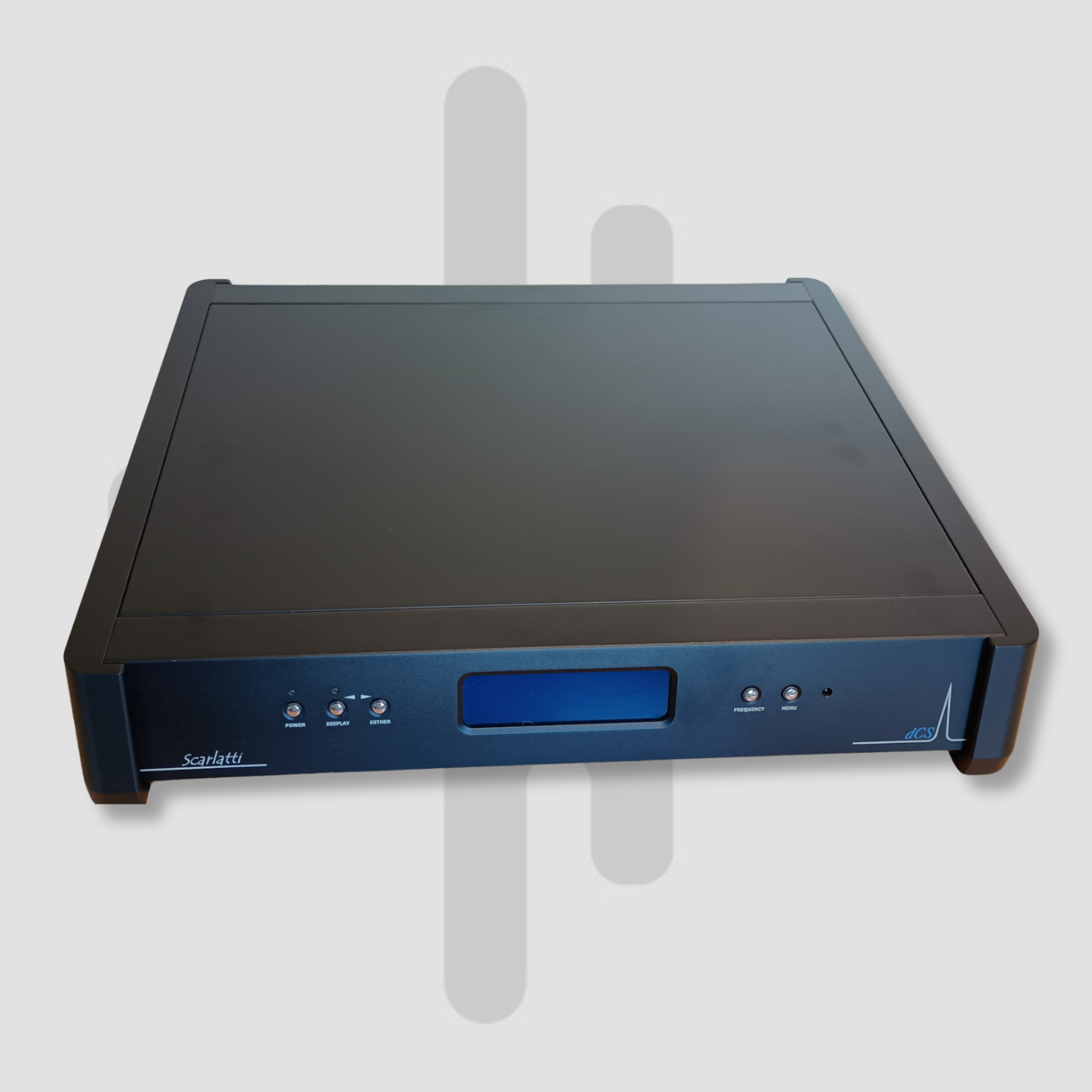

dCS SCARLATTI MASTER CLOCK
dCS SCARLATTI MASTER CLOCK
Regular price
£2,750.00 GBP
Regular price
Sale price
£2,750.00 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
(Original Retail Price £8,500)
Couldn't load pickup availability
Item Details
- Manufactured circa 2010
-
This item is in excellent condition (9/10)
- Original packing and manual included
- Serial Number: 7454
- Original retail price: £8,500
Specification
| Specification | Detail |
|---|---|
| Type | Class 1 master clock |
| Production | 2007 – 2012 |
| Finish options | Silver or black |
| Chassis | Aerospace-grade aluminium with laminated acoustic damping panels |
| Display | Low-power LC display |
| Remote control | Nevo Q50 programmable remote (supplied with transport) or RS232 |
| Clock oscillator | Dual VCXO, temperature-compensated, pre-aged and match-selected |
| Clock frequencies | 44.1, 48, 88.2 and 96 kHz |
| Accuracy (guaranteed) | Better than ±1 ppm when shipped (guaranteed 12 months from shipping) |
| Accuracy (typical) | ±0.1 ppm when shipped and stabilised |
| Warm-up to rated accuracy | Typically 1 minute |
| External reference input | 1× 75Ω BNC — Word Clock (TTL) or AC coupled (Bipolar) at 32, 44.1, 48, 88.2, 96 kHz, 1, 5 and 10 MHz; lock range ±300 ppm |
| USB input | 1× USB 2.0 Type B — uncompressed PCM at 32, 44.1, 48, 88.2, 96, 176.4 and 192 kS/s plus DoP |
| Word Clock outputs | 6× independently buffered 75Ω BNC — selectable 44.1, 48, 88.2 or 96 kHz |
| S/PDIF outputs | 2× (1× RCA phono, 1× BNC) — carry audio from USB input up to 24-bit/192 kS/s |
| OS support | Windows XP / Vista / 7; Mac OS X |
| USB audio class | Class 1 (up to 96 kS/s, driverless); Class 2 requires dCS drivers on Windows (not required on OS X 10.6.3+) |
| S/PDIF output format | Packetised PCM at 32, 44.1, 48, 88.2, 176.4 and 192 kS/s |
| Dimensions (W × D × H) | 465 × 405 × 75 mm (18.3 × 16.0 × 3.0 in) |
| Weight | 10.0 kg (22.0 lbs) |
| Mains input | Factory set for 100, 115, 220 or 230V AC, 49–62 Hz |
| Power consumption | 8W typical / 12W maximum |
| Firmware update | Via Reference Input (CD) or USB input (PC) |
Resources & Reviews
https://dcsaudio.com/legacy-components/scarlatti-clock
