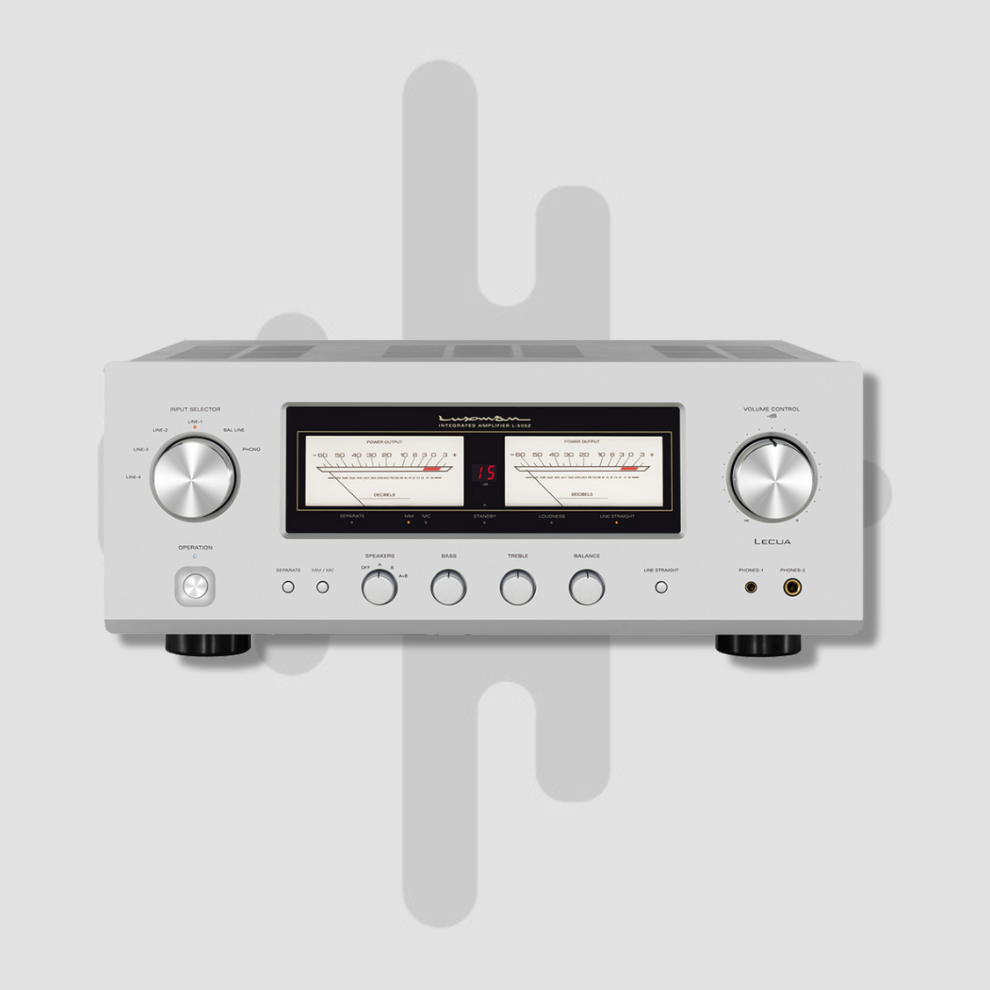

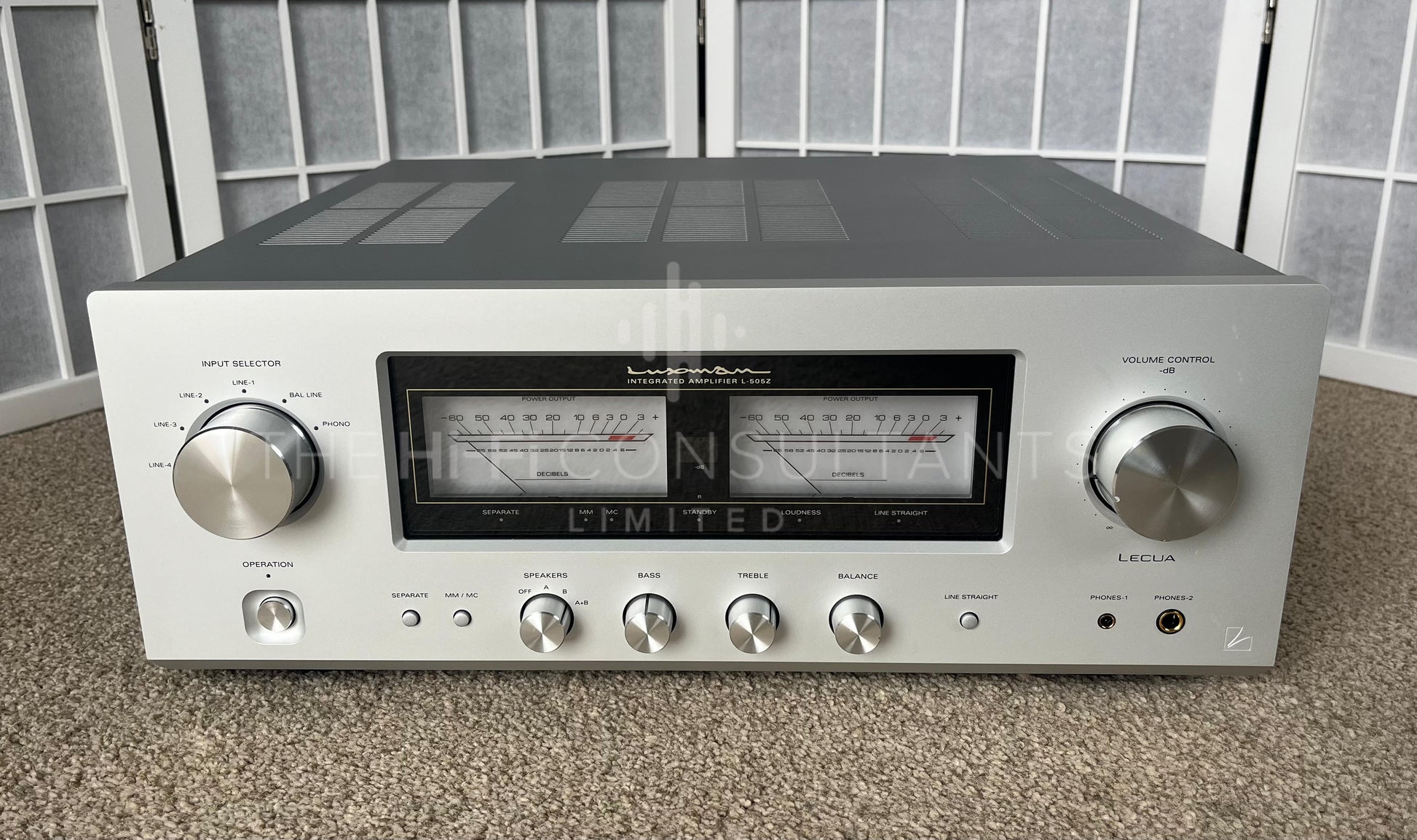

LUXMAN L-505Z INTEGRATED AMPLIFIER (240V)

Item Details

• Manufactured in 2024
• This item is in excellent condition (9/10)

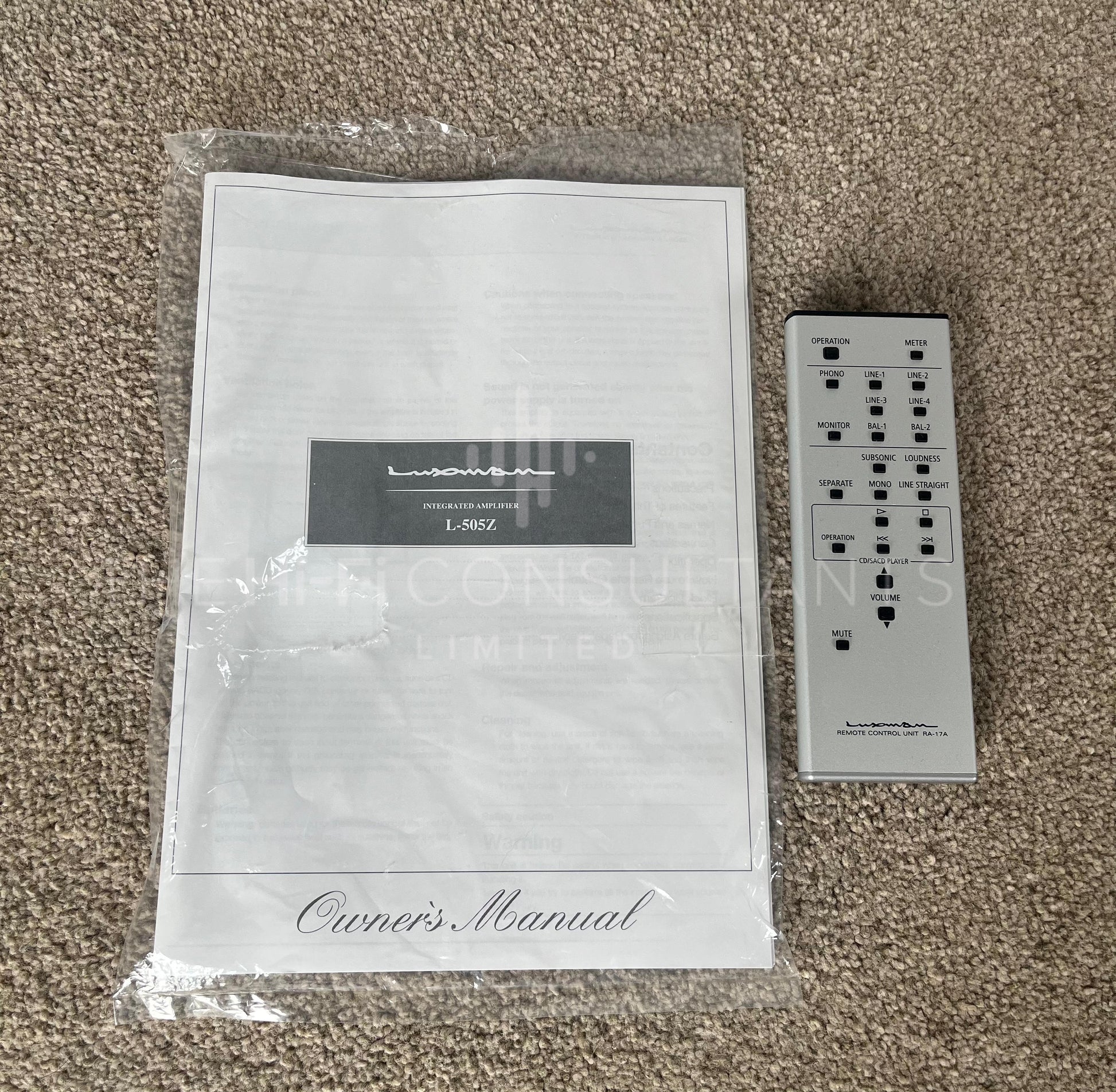

• Original packing included.

• The current retail price is £5,500
• Comes with a 12 month warranty

Technical Specification

Output Power (Rated):

100 W + 100 W (8Ω, 20 Hz–20 kHz, THD 0.05%)

150 W + 150 W (4Ω, 20 Hz–20 kHz, THD 0.05%)

Circuit Topology: ODNF-u (Only Distortion Negative Feedback, Ultimate version)

Amplification Stages: 3-stage Darlington, push-pull configuration

Power Supply: Oversized power transformer with large filter capacitors

Performance

Frequency Response: 20 Hz – 100 kHz (+0, –3 dB)

Signal-to-Noise Ratio:

Line: 106 dB

Phono (MM): 91 dB

Phono (MC): 75 dB

Input Sensitivity / Impedance:

Line: 180 mV / 47 kΩ

Phono (MM): 2.5 mV / 47 kΩ

Phono (MC): 0.3 mV / 100 Ω

Main In: 1.1 V / 47 kΩ

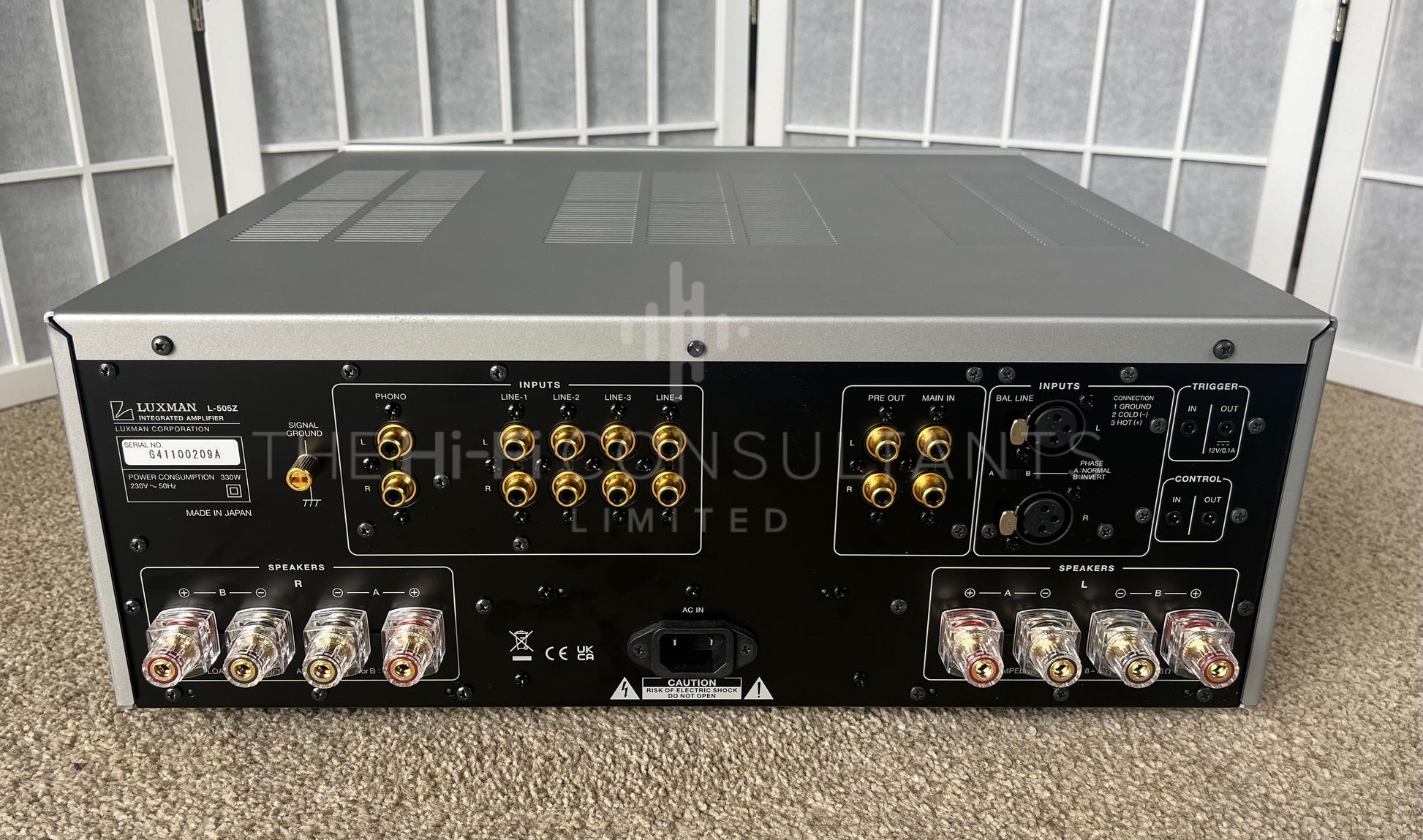

Inputs / Outputs

Inputs: Line × 4, Phono (MM/MC) × 1, Recorder × 1, Main In × 1

Outputs: Speaker A/B terminals (bi-wire capable), Pre Out × 1, Recorder × 1

Headphone Output: Yes (6.3 mm standard jack)

Power & Consumption

Power Supply: 240 V AC, 50/60 Hz

Power Consumption: 270 W (rated), 87 W (idle), 0.4 W (standby)

Physical

Dimensions (W × H × D): 440 × 178 × 454 mm

Weight: 22.5 kg

Resources & Reviews

Manufacturers Website - https://www.luxman.com/

https://twitteringmachines.com/review-luxman-l-505z-integrated-amplifier
