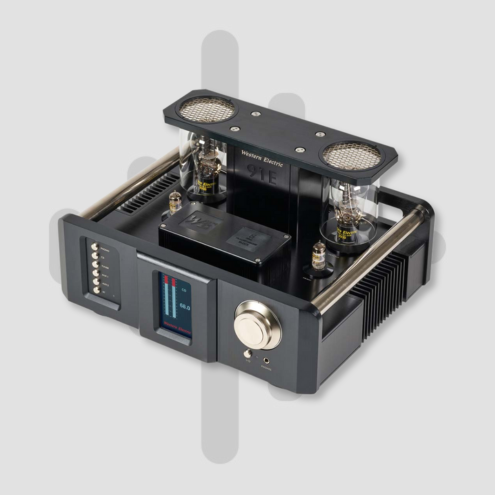

WESTERN ELECTRIC 91E INTEGRATED VALVE AMPLIFIER
WESTERN ELECTRIC 91E INTEGRATED VALVE AMPLIFIER
(Original Retail Price £15,000)
Couldn't load pickup availability
Less than 100 hours use.
Item Details
- Manufactured in 2024
- This item is in condition (9/10)

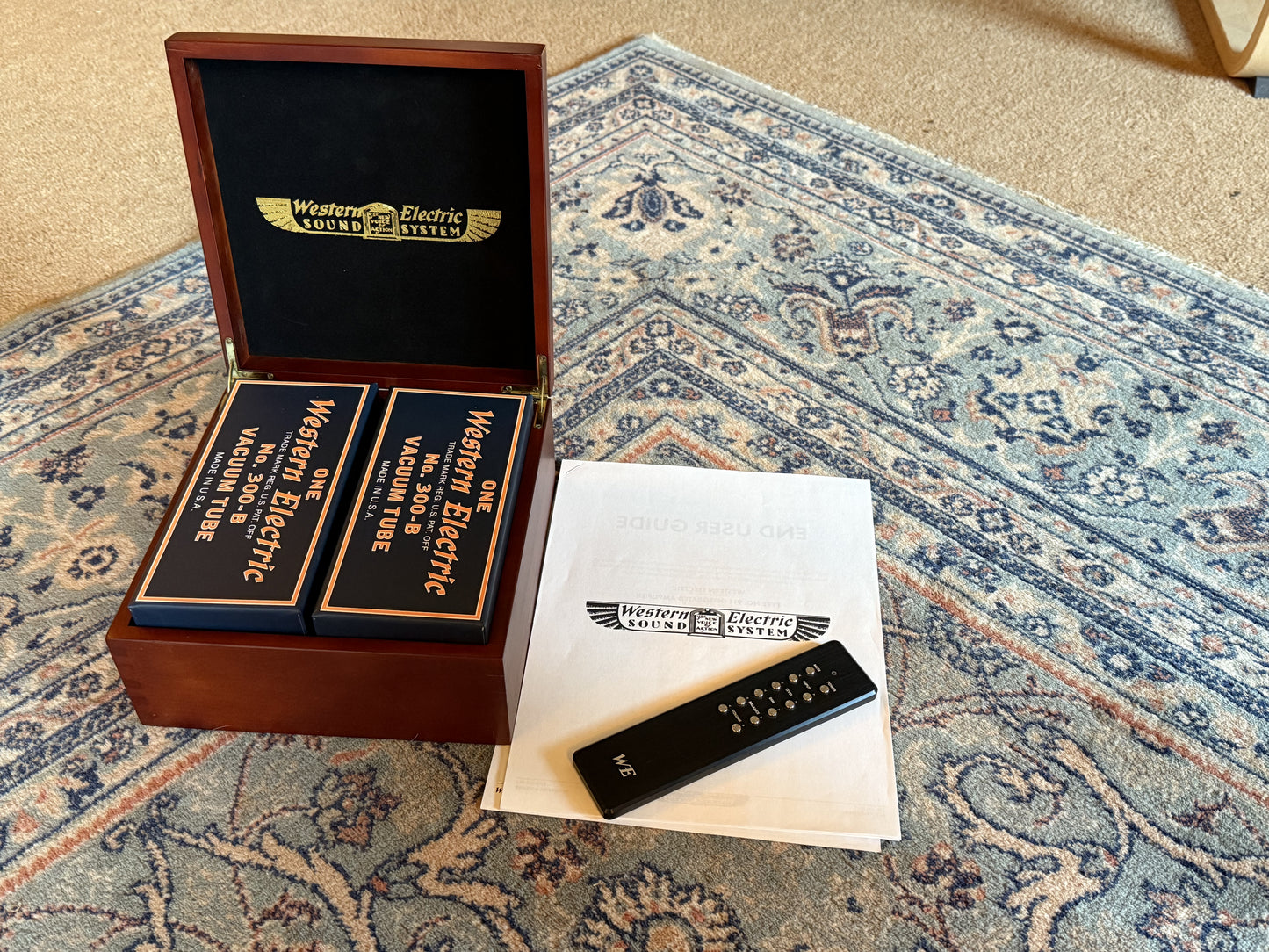

- The sale includes original box, manuals & remote control.
- Current retail price was £14,995
Technical Specification
| Weight | 49lbs / 22.2 kg |
| Dimensions | 18.9 x 15 x 11.1” / 48 x 38 x 28cm |
| Chassis | Machined Aluminum |
| Colors | Nickel, Champagne, Black |
| Operating Voltage | 100V / 115V / 230V / 50-60Hz |
| Power Consumption (Operation / Standby) | 160W / 0.3W |
| Mains Fuse | 2A slow-blow |
| Electron Tube Complement | One Matched Pair Western Electric 300B, 2x ECC81 |
| Phono MM Sensitivity (10W / 4Ω) | 0.75mV |
| Phono MC Sensitivity (10W / 4Ω) | 70μV |
| CD Sensitivity (10W / 4Ω) | 0.27V |
| CD Input Impedance | 20 kOhms |
| Phono MM Input Impedance | 47 kOhms | | 100 pF |
| Phono MC Input Impedance | 1000 kOhms (adjust via Phono Load plugs) |
| SNR MM (10W / 4Ω, input 5mV) | 83 dB(A) |
| SNR MC (10W / 4Ω, input 0.5mV) | 73 dB(A) |
| SNR CD (10W / 4Ω, input 0.5V) | 101 dB(A) |
| CD Frequency Response | 15 Hz – 32 kHz (-3 dB) |
| Phono Frequency Response | 30 Hz – 20 kHz (RIAA within +/- 0.5 dB) |
| Output Power / 4 Ω / THD 10% | 2 x 20 watts |
| Output Power / 4 Ω / THD 5% | 2 x 16 watts |
| Output Power / 4 Ω / THD 3% | 2 x 14 watts |
| Output Power / 8 Ω / THD 10% | 2 x 20 watts |
| Output Power / 8 Ω / THD 5% | 2 x 16 watts |
| Output Power / 8 Ω / THD 3% | 2 x 14 watts |
| BT Standard | v4.2 |
| BT Codecs | BC, MP3, AAC, Fastream, APTX |
| BT Sample Rate (adaptive) | Up to 96kHz / 16-bit |
| BT frequency response | 20 Hz – 20 kHz |
| BT SNR | 96dB |
Resources & Reviews
Manufacturers Website - https://www.westernelectric.com/91e?srsltid=AfmBOoo5Bg-YCK3HpC-JES3CwaEOZMFr6g248X_OB4kye4HRvk77NDSe
