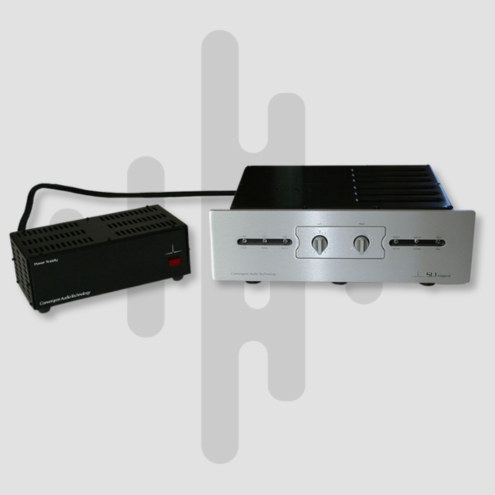

C.A.T SL1 LEGEND PREAMPLIFIER (inc MM/MC PHONOSTAGE)

C.A.T SL1 LEGEND PREAMPLIFIER (inc MM/MC PHONOSTAGE)

Regular price £13,975.00 GBP
Regular price Sale price £13,975.00 GBP
Price Drop SOLD
Tax included. Shipping calculated at checkout.

(Original Retail Price £21,000)

Upgraded to the Black Path version in 2017, all valves were replaced by CAT in 2018 and the line level valves (V6 & V7) have been upgraded to NOS Telefunken EC88cc valves.

Item Details

  • Manufactured in 2011
  • This item is in excellent condition (9/10)
  • The serial number is 1204
  • The sale includes original box, manuals & remote control.
  • The original retail price was £21,000

Technical Specification

  • Gain (@1kHz): Line 25.8 dB (“high”) / 15.2 dB (“low”), Phono 47dB MM / 58 dB MC (low) / 64dB MC (high)
  • Gain Tracking: Line .05dB, Phono .05dB
  • Frequency Response: Line 0.1Hz to 1.5 MHz+0, -3dB Phono RIAA +/- 0.05dB 20Hz to 20kHz (MC & MM)
  • Harmonic Distortion (@ 1 volt): Line less than .0001% Phono less than .0005%
  • Slew Rate: Line 15 volts/microsec, Phono 10 volts/microsec
  • Maximum Output (@1kHz): Line & phono 50 volts rms
  • Input Overload: Line 1000 volts rms Phono MM 250 mv rms at 1kHz, MC 70 mv rms
  • Noise: Line High 98 dBA, Low 109 dBA below2 volt output MM 80dB below 1mv input. (0.10uv EIN) MC high 96 dbA below 1mv input (0.018 EIN)
  • Separation: Line greater than 100 dB Phono greater than 100 dB
  • Input Impedance: Line 50 kohms, 20pf Phono 47.5 kohms, 180 pf (user adjustable) MC 2,000 ohms
  • Output Impedance: Line 100 ohms, Phono 50 ohms
  • Maximum Load: Line under 4000 pf, over 5000 ohms Phono under 4000 pf, over 10,000 ohms
  • Dimensions: Main Chassis - 19.0” X 5.24” X 12.2” Power Supply - 12,2” X 4.0” X 6.0”
  • Weight: Net 80 lbs., Ship 85 lbs.
  • Power Requirements: 120v, 60Hz, 80 watts (export version available)

Resources & Reviews

 soundstagenetwork.com (2009) - https://www.soundstagenetwork.com/equipment/cat_sl1_legend.htm#:~:text=%22The%20SL1%20Legend's%20line%20stage,brass%20overtones%20had%20what%20can

Manufacturers Website - https://www.catamps.com/legend
